Listening Room
Listening Room Specifications

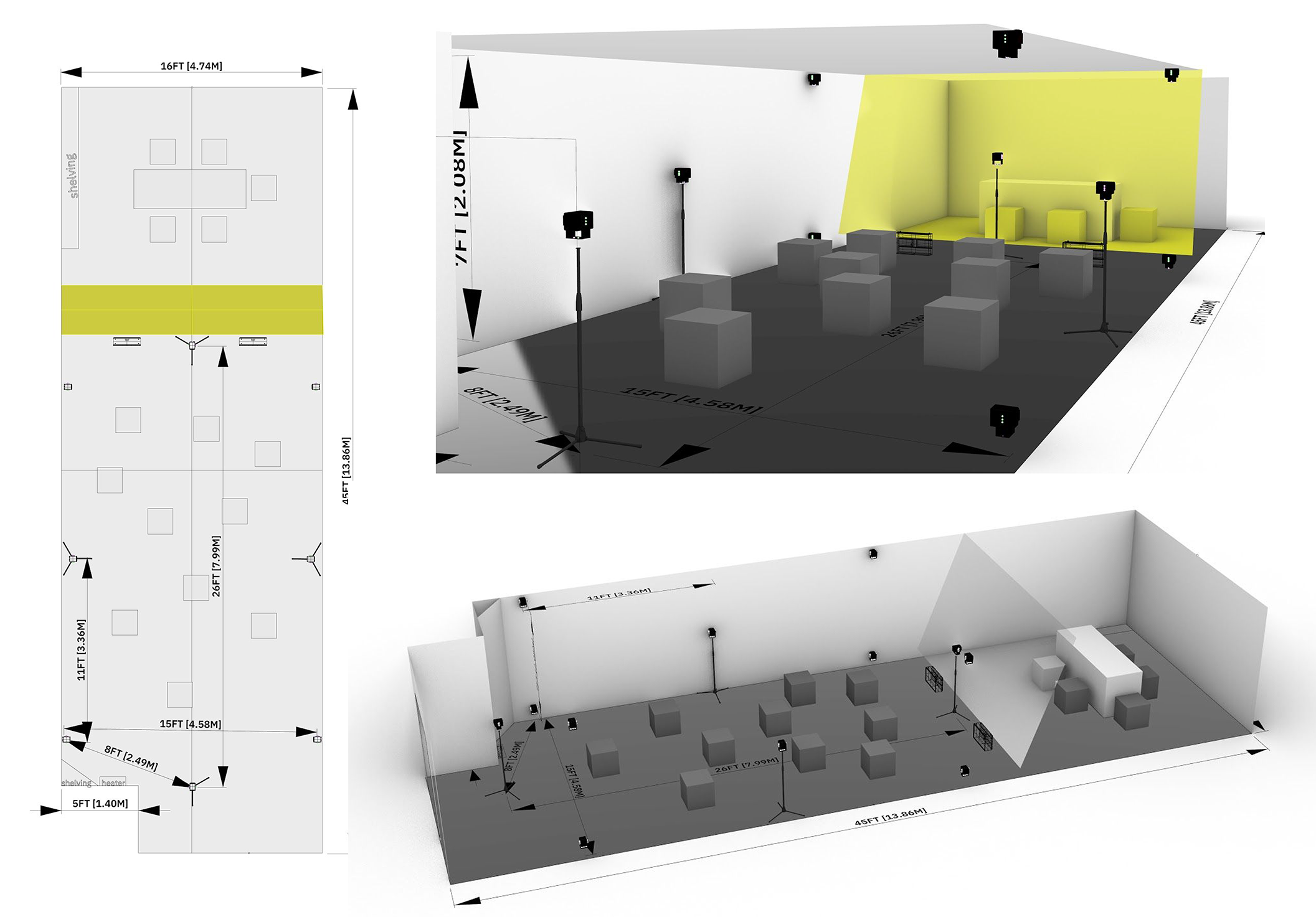

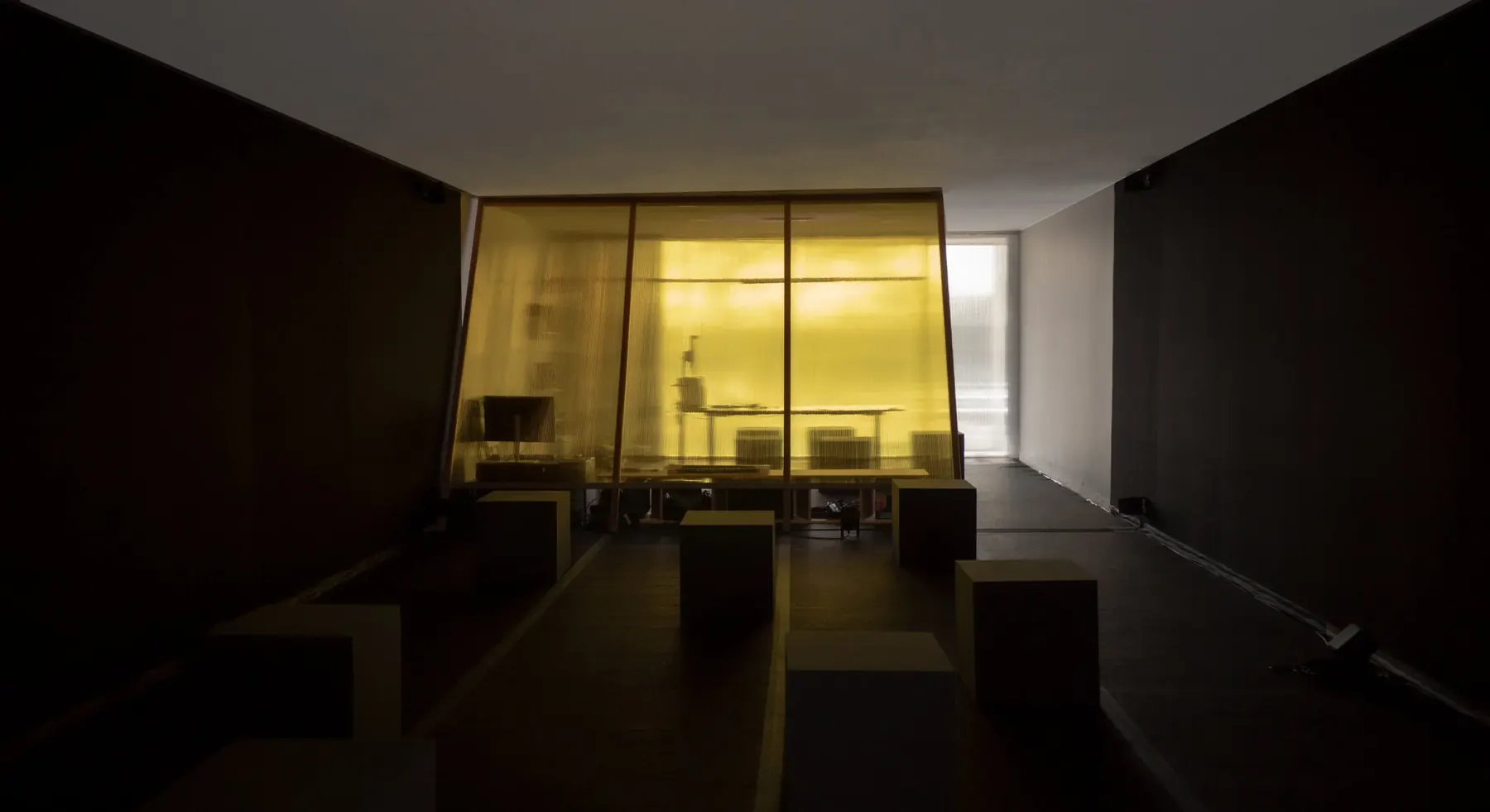

The Gardena listening room is 15'x25' (4.5m x 7.5m) with a sixteen channel Meyer Sound / K Array audio system (MM4XP mains and K-Array Anakonda ceiling fill arrays, Meyer sub). The speaker configuration is dual-height quad with an additional 4 center fills and two long line arrays overhead for ceiling fill.
Playback and real-time processing is via computers running SPAT::Revolution, an audio rendering platform that uses a virtual model of the listening room geometry and loudspeaker setup to allow many non-standard formats to be projected into the space, tuned for the listening conditions as they are.
Room Dimensions
15' x 25' (4.5m x 7.5m)
Channels
16 channels
Mains
Meyer Sound MM4XP
Ceiling Fill
K-Array Anakonda line arrays
Sub
Meyer Sound
Configuration
Dual-height quad + 4 center fills + 2 overhead line arrays
Processing
SPAT::Revolution
Rendering
Virtual model of room geometry and loudspeaker setup for non-standard format projection
Accurate as of March 2023
